FlightLine RC B-24 Liberator OLIVE DRAB 2000mm (78 inch) Wingspan Kit RC Airplane
FlightLine RC B-24 Liberator OLIVE DRAB 2000mm (78 inch) Wingspan ARF RC Airplane
1, it requires 3530-860kv Brushless Outrunner Motors and Servo
2, it requires 4 channel Radio
3, it requires 4 Channel Receiver
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp

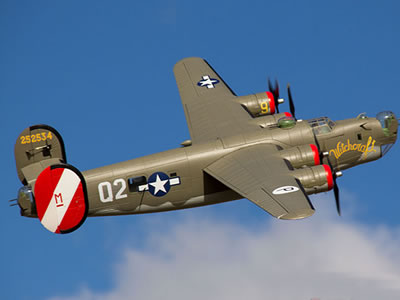

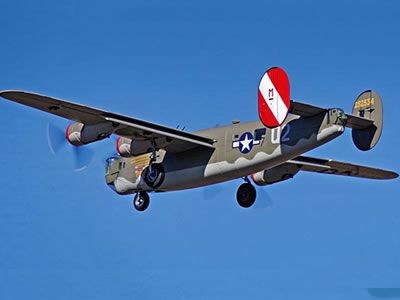

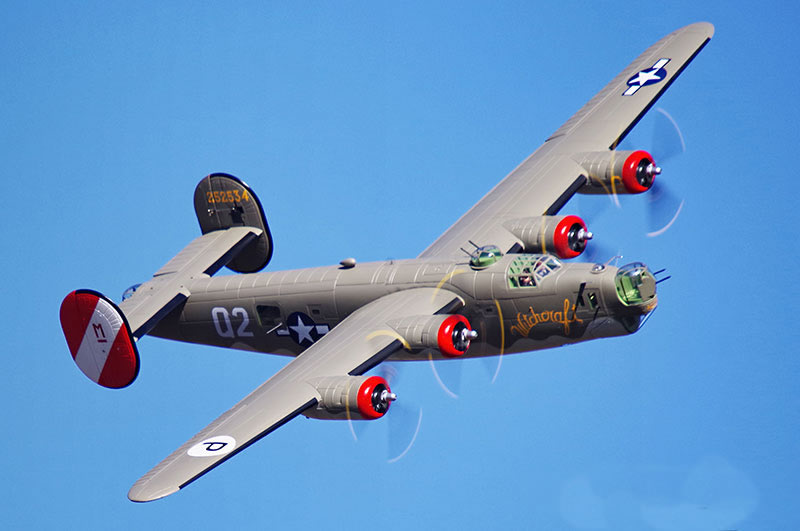

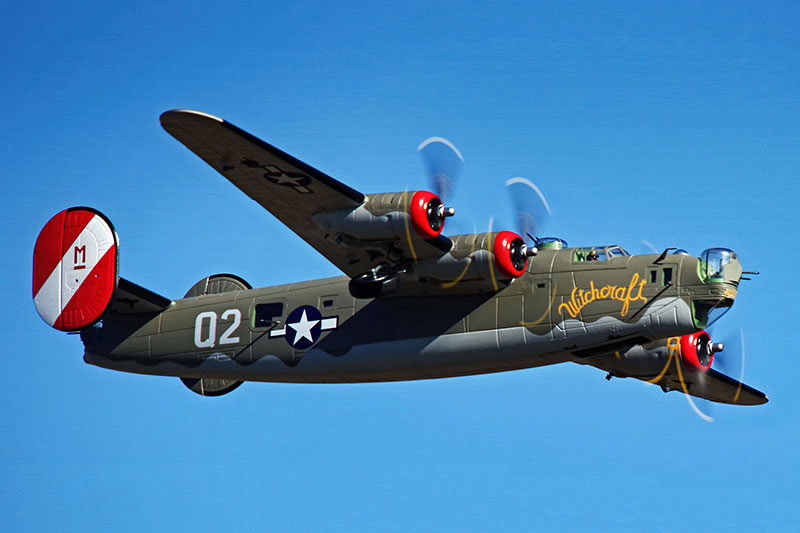

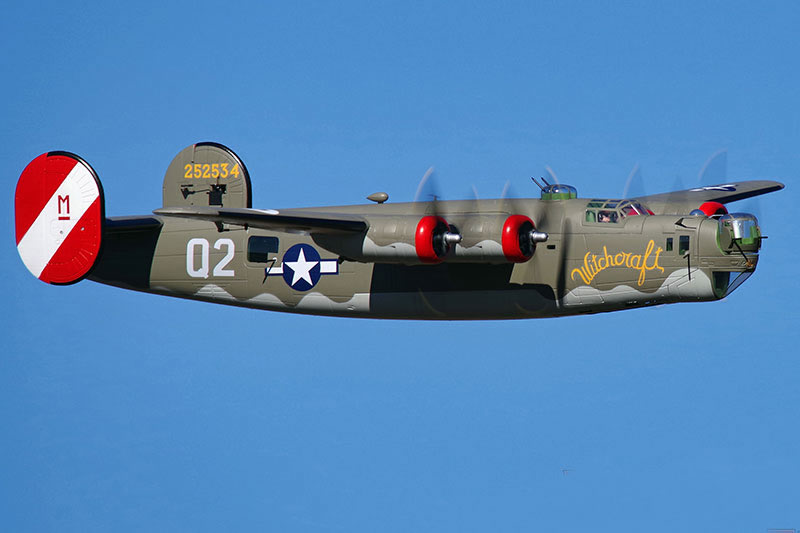

The famed B-24 Liberator is one of the most recognizable WWII aircraft of all time. Serving in every theater of that global conflict, the B-24 fought to bring its brave crews home through unimaginable danger. With humility and reverence, freewing Model is proud to introduce the world's first foam electric Kit B-24 Liberator, in remembrance of the crews who gave the ultimate sacrifice and those who carry on its memory. The FlightLine RC B-24 Liberator is approximately 1/16.7 scale, with a 2000mm wingspan and 1230mm length, and is constructed from EPO foam and reinforced with integrated aluminum, carbon fiber, plywood, and plastic structures. Designed with input from the Collings Foundation, which operates the only flying B-24-J, Witchcraft, our flying electric RC delivers the ultimate experience for pilots seeking a worthy homage to the historic Liberator.

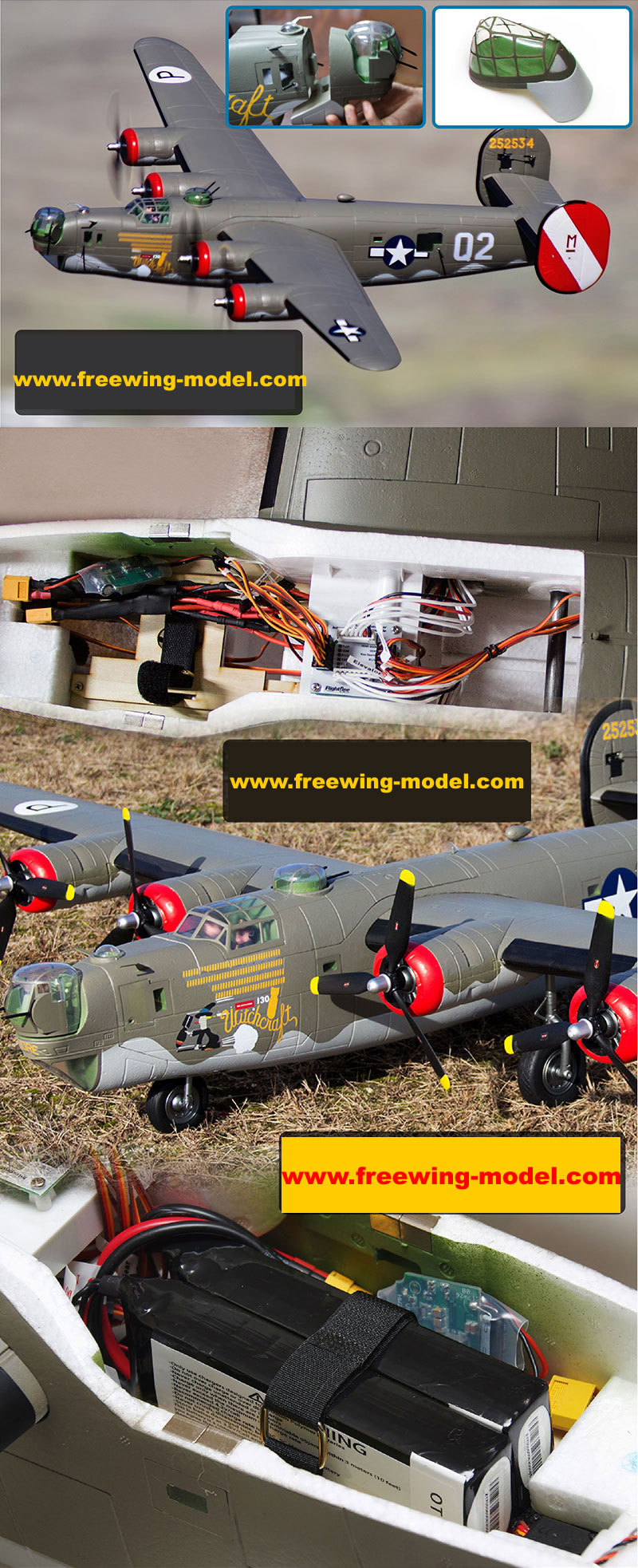

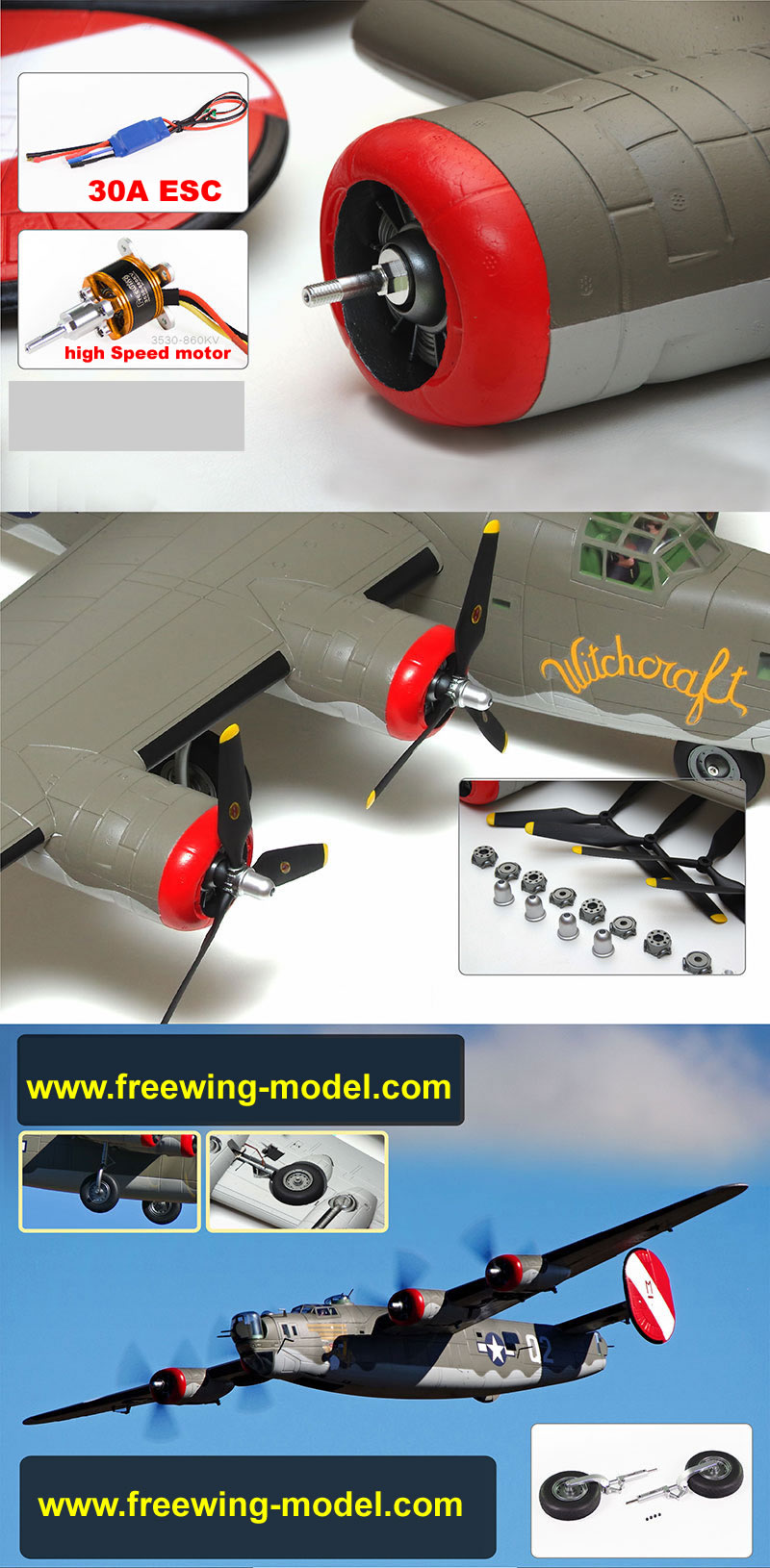

The FlightLine RC B-24 uses four 3530-860kv brushless outrunner motors, 30A ESCs, counter-rotating propellers, and a separate 5A UBEC. The recommended pair of 4s 14.8v 3000-3600mAh lipo batteries, common with most of the other FlightLine RC aircraft series, can power the aircraft in excess of 110kph/70mph, for 5-10 minutes based on a pilot's throttle management. We prefer mid-throttle cruising for 7+ minutes of scale-style flying, appropriate for a bomber of this size. The outboard motor pair and inboard motor pair are powered by separate flight batteries, allowing for powered landings in the event of one battery losing a cell. A 70mm tall nose wheel and 85mm tall main wheels provide stable operation on grass runways, with split flaps aiding controlled low speed flight and landing approaches.

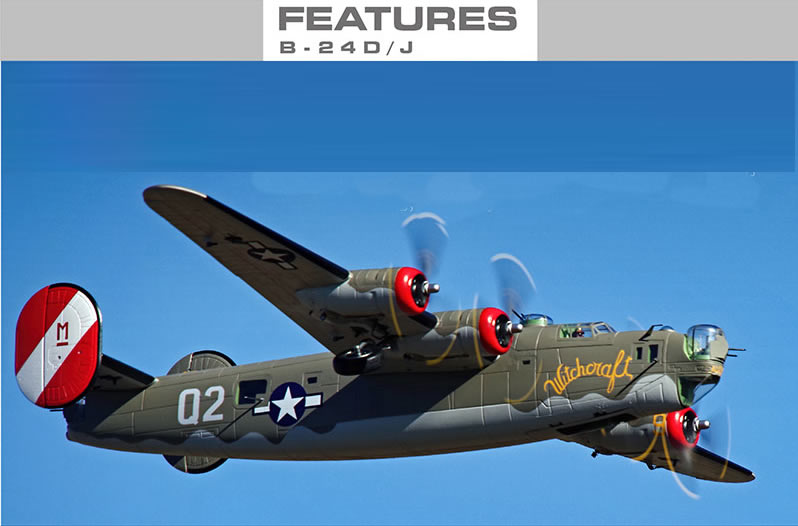

FEATURES:
- Green color and silver color are available,are in stock,same price.

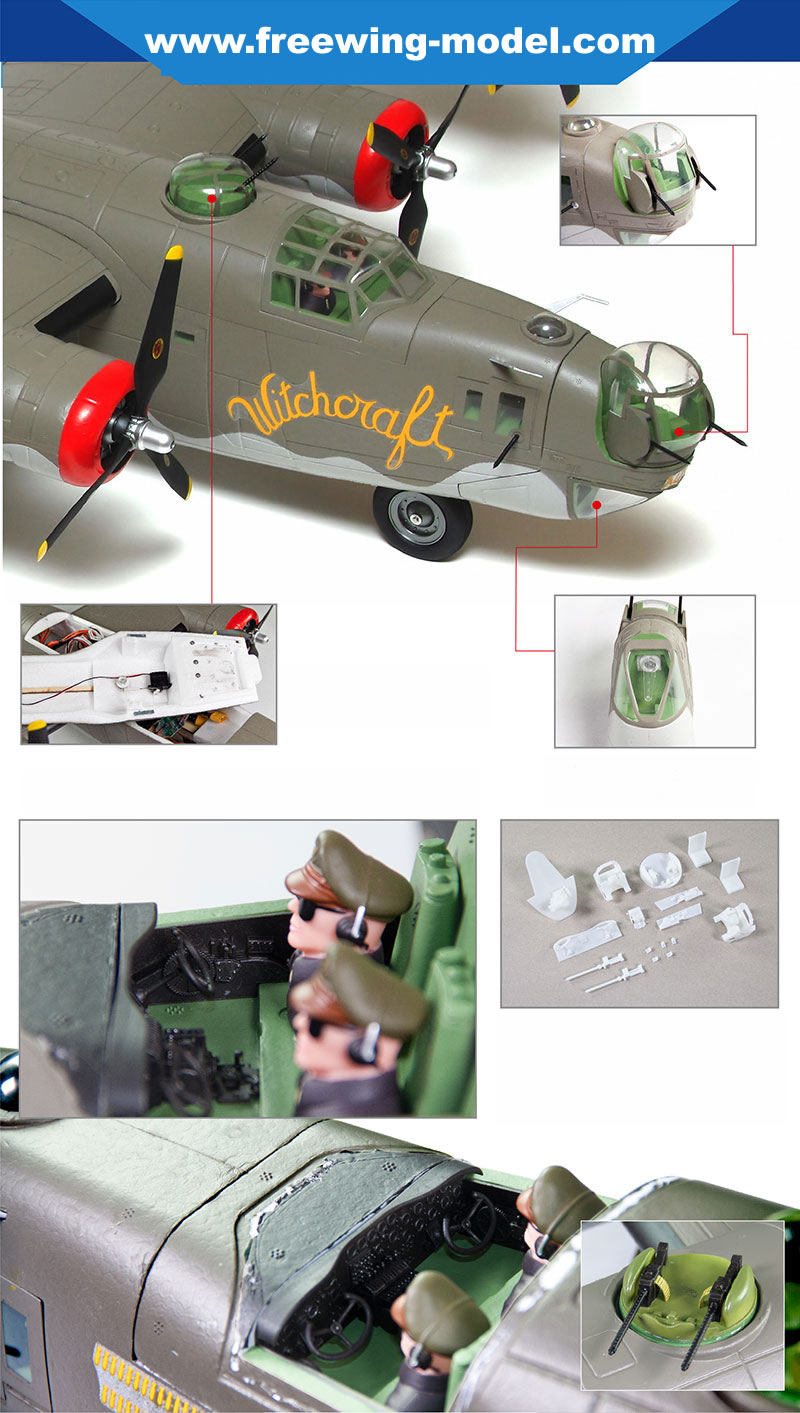

- Includes two magnetic nose cones to alternate between -D and -J variants
- Panning nose turret and upper turret with pre-installed tiller arms

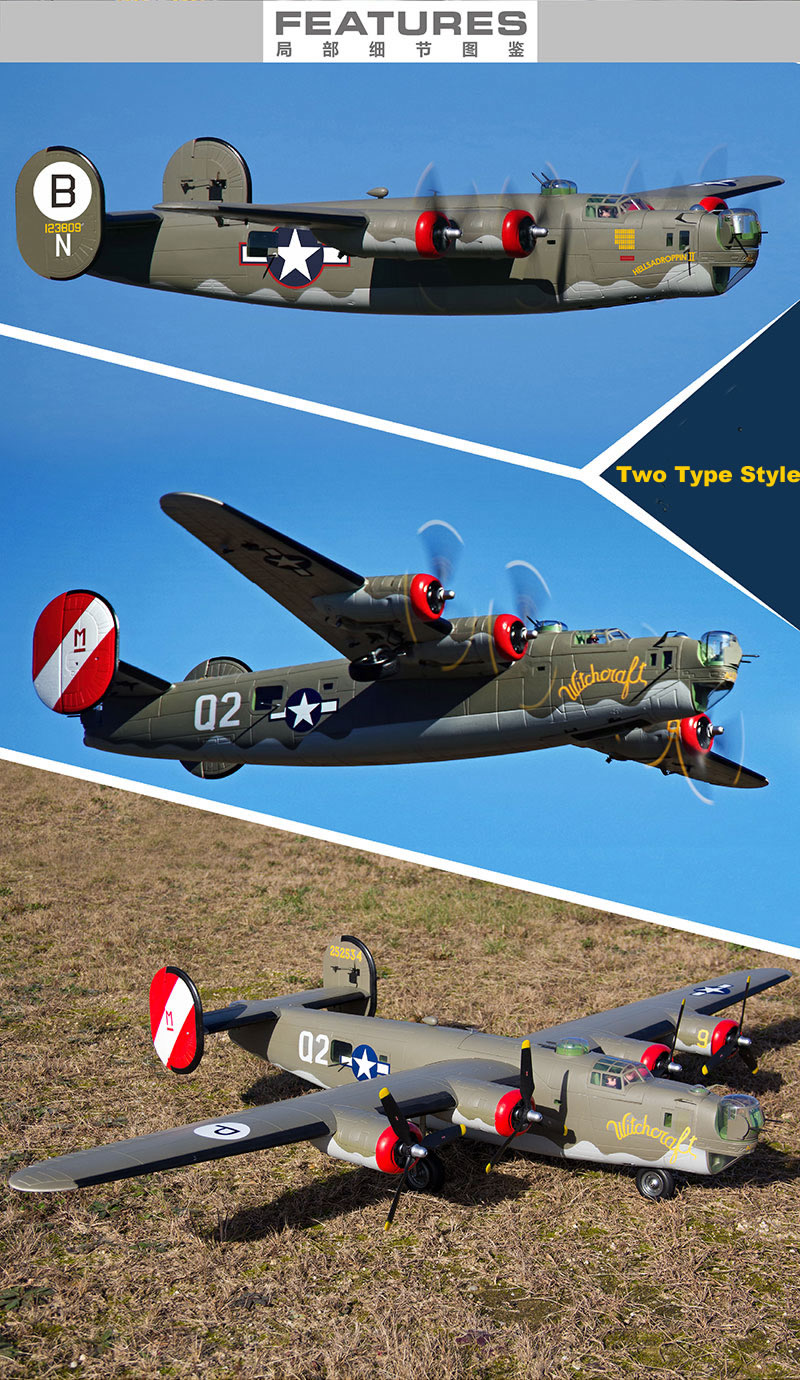

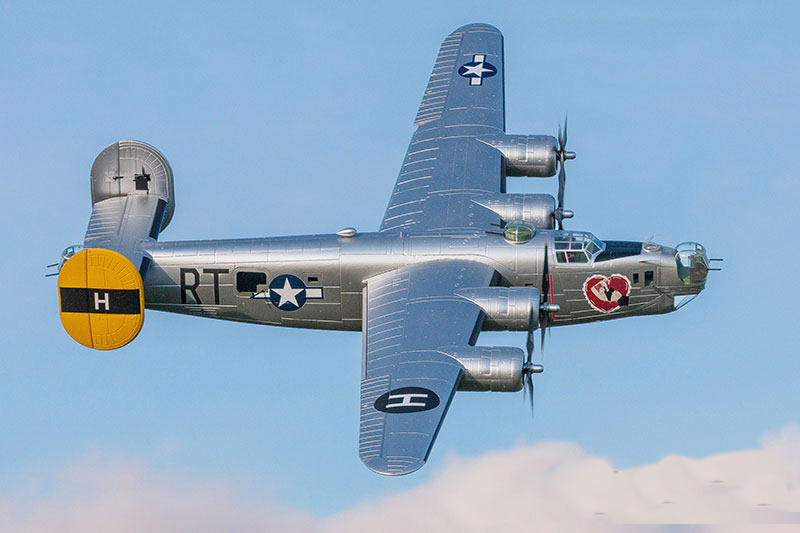

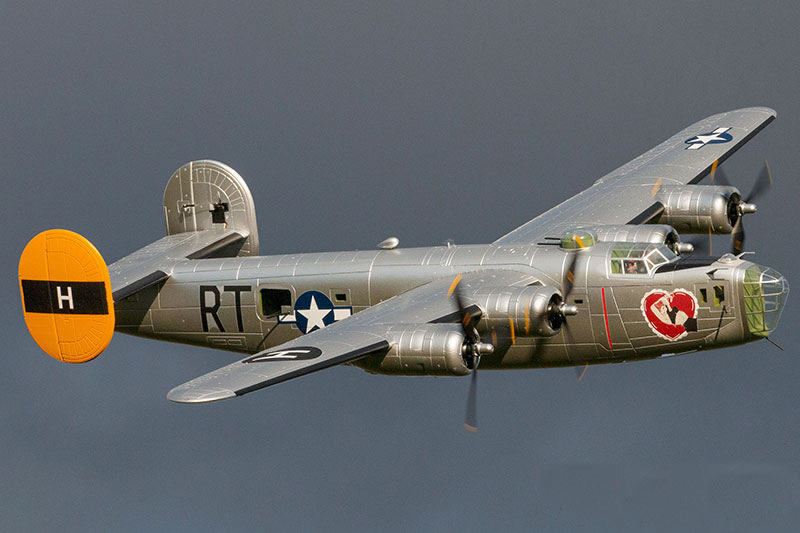

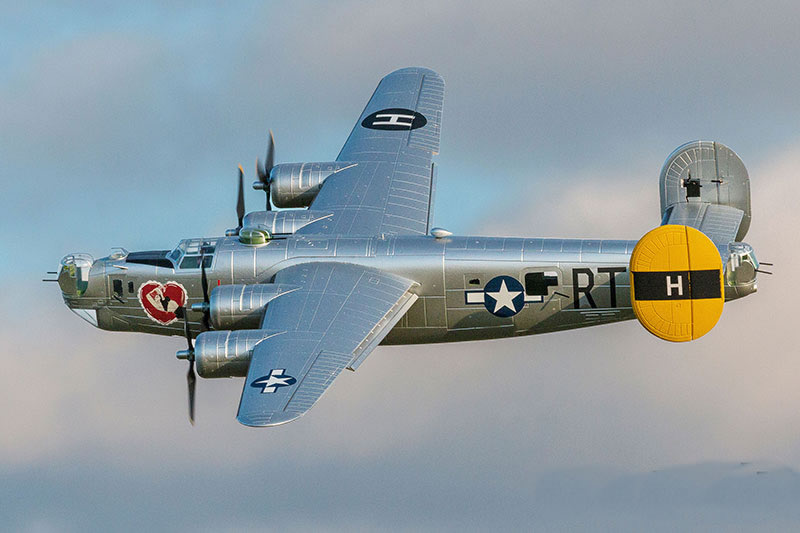

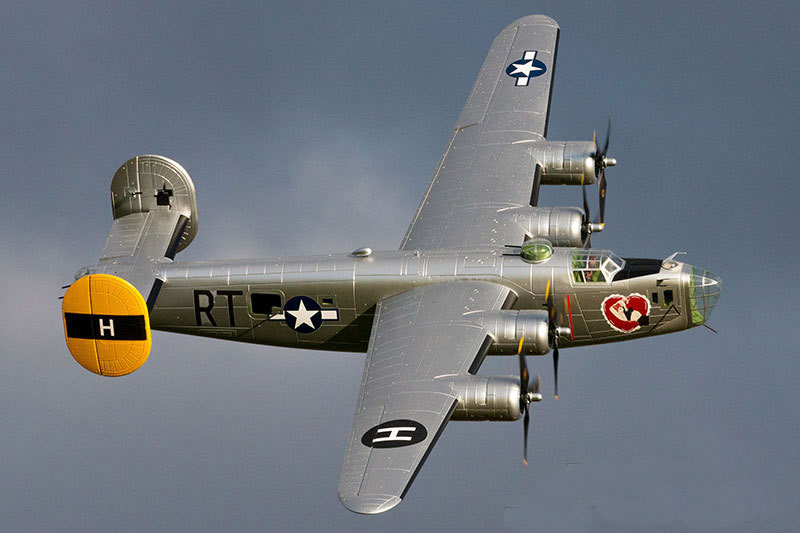

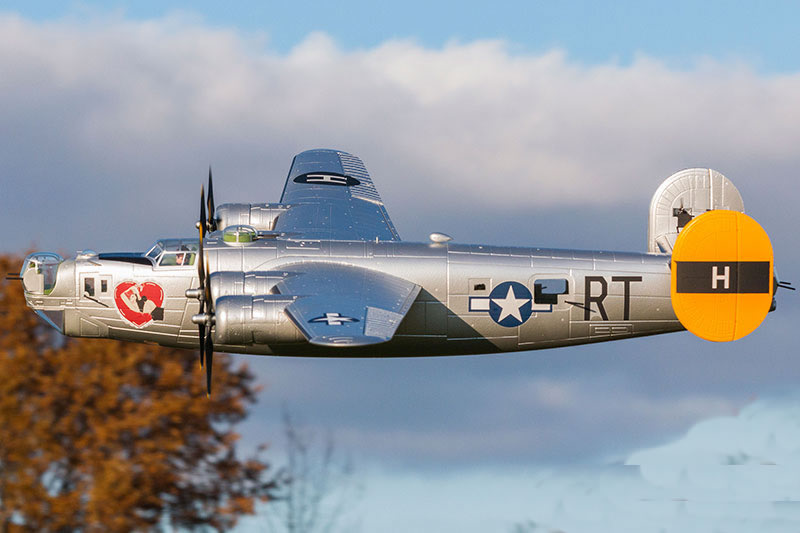

- Two paint schemes to choose between (Green/Gray or All Silver)
- Two decal sets included inside each paint scheme's box

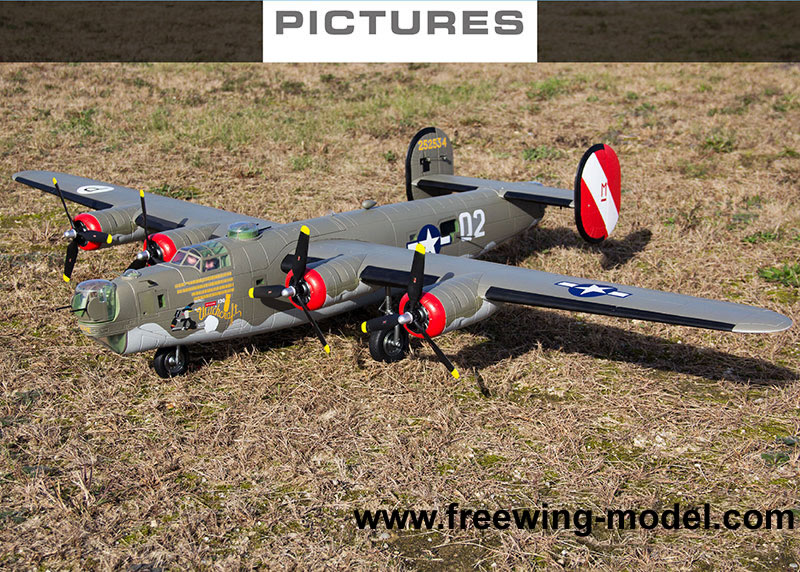

- Grass Capable Landing Gear with 70mm Tall Nose and 85mm Tall Main Wheels
- 12 Screw Primary Assembly
- Removable Wings with Convenient Ribbon Wire Harness
- Split flaps
- Vast Customization Options for FPV cameras, Moving Turrets, Doors, 3D Printed Detail upgrades, etc
- Modeled with Input from Collings Foundation, Operator of Last Flying B-24J, "Witchcraft"
INCLUDES:
- FlightLine RC B-24 Liberator Olive Drab 2000mm (78") Wingspan - Kit Rc airplane
- Motors, ESCs, servos were not installed in the airplane,it is empty Rc airplane
REQUIRES:
- Motors, ESCs, servos
- 6 Channel Radio - Select a minimum 6 channel radio
- 6 Channel Receiver - Select a minimum 6 channel receiver
- TWO 4 Cell 14.8V 3000 - 3600 mAh LiPo batteries with XT60 Connectors
- 4 Cell Compatible Battery Charger
PRODUCT SPECIFICATIONS:
Wingspan |
2000mm / 78.74in |
Length |
1230mm / 48.4in |
Weight |
2910g / 102.64oz (w/o battery) |
CG (Center of Gravity) |
76mm from the leading edge of the wing at the root |
Power System |
Four 3530-860kv Brushless Outrunner Motors |
Electronic Speed Control |
Four 30A ESC, 5A BEC, Two XT60 Connectors |
Propeller / EDF |
Counter-Rotating |
Servos |
9g standard digital metal gear with 550mm lead : nose gear steering |
Landing Gear |
Electronic retractable main gear and steerable nose gear with digital metal gear steering servo |
Required Battery |
Two 4s 14.8V 3000mAh-4000mAh LiPos with XT60 connector (required) |
Required Radio |
6 Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Split |
Lights |
No |
Hinge Type |
Mixed/Nylon Reinforced |
Material |
EPO Foam |
Skill Level |
Intermediate/Advanced |
Build Time |
2-4 Hours |
