Freewing Ares 3D Red Ultra Performance 8S 90mm PNP EDF with Thrust Vector Jet
1.it has been installd 12-Blade 90mm EDF with 4075-1350Kv Brushless Motor Power Motor system, 120A Electronic Speed Controller (ESC)
2.it requires 8 Channel Radio,8 Channel Receiver
3.it requires 6 Cell 22.2V 5000 - 6000 mAh Lipo Battery with EC5 connector
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp

This Product is available in stock，we will ship the package box within 48 hours after the buyers pay money via paypal.
The Freewing Ares 90mm 8S PNP EDF 3D High Performance sports jet has been authorized by Silvestri Sebastiano, SebArt brand owner and designer. At the same time, Seba, renowned 3D pilot also participated in the entire product testing process.

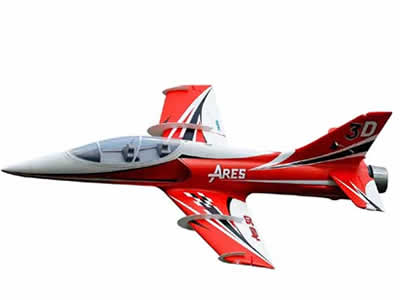

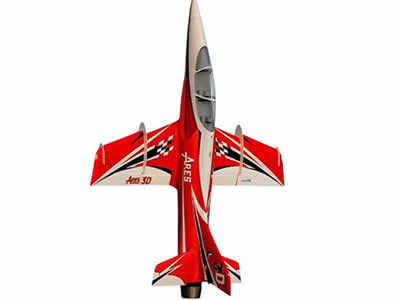

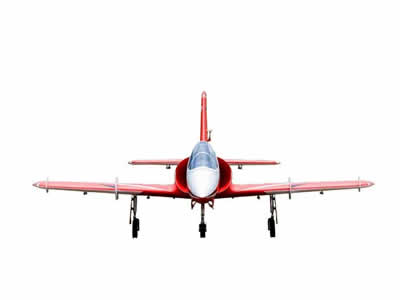

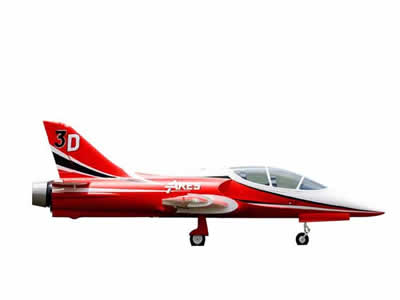

Freewing Ares 90mm 8S PNP EDF 3D High Performance sports jet has a wingspan of 1156mm, a length of 1400mm, and a net weight of 2542g (excluding batteries). There are two color schemes available, mainly red or yellow. The model jet contains 7 LED lights, distributed on the left and right of the fuselage, the upper and lower of fuselage, the right and left of the main wings, and the top of the vertical tail. In low light environments, the all-round lighting arrangement makes it easier to determine the jet's attitude in the air.
The product structure design is excellent, balancing weight control and ease of use while ensuring strength. The main wing adopts QUICK II second-generation screw-less portable install structure design, and the tail wing continues to be installed with screws. By wrapping the edges of the battery compartment with plastic material, not only can it prevent collision problems during use, but it also serves as the side reinforcement. All control surfaces are connected and transmitted using hidden plastic hinge chains, screw fixed control surface servo arms, and metal universal ball heads, ensuring smooth and precise control surface movements.
The Freewing Ares 3D sports jet has a nose landing gear door and a follow-up rear landing gear door. CNC precision machined aluminum landing gear support rods have high assembly accuracy and no virtual position sensation when turned. The nose landing gear compartment is designed with a U-shaped reinforced support frame, which can further protect the landing gear during takeoff and landing. We have provided an additional set of non-retractable simplified landing gear as an optional accessory CI!_ Compared to the standard retractable landing gear, it reduces the weight by 178g, allowing the aircraft to achieve a greater thrust to weight ratio.
This product is divided into two types: 6S PNP and 8S PNP, designed to meet different customer needs. The indoor thrust to weight ratio test for two configurations is as follows:
The Freewing Ares 3D sports jet adopts a new second-generation vector nozzle structure G:l, which reduces its thrust loss from 35% to less than 6% compared to the first generation. The PNP version assist in controlling the conventional control surface and vector nozzle respectively, reducing the difficulty of control while improving the flight performance. On the premise of fully mastering flight skills, Ares 90 is able to perform most professional level 3D stunt actions such as hovering, snake rolling, flat spiral, cobra, hitting walls, rotating in place from various angles, etc.
Quick-Install & Release Wings
The Freewing 90mm 8S PNP EDF 3D High Performance sports jet features a screwless quick release wing design that makes field assembly and disassembly a breeze.
Functioning Scale Airbrake
The Freewing Ares High performance Sport 3D 90mm Red 8S PNP RC Jet includes a functioning scale airbrake, operating on a linear electric actuator to help aid in high alpha maneuvers as well as slowing the plane down after landing.
Spring-Loaded Top Cheaters
Incorporating an innovative ammenity, Freewing has added spring-loaded top-side cheaters that only open and close based on air pressure differential.
100% All-New Molding
The Freewing Ares 3D jet 2025 addition is an entirely new mold with new and updated features and closer-to-scale detail that dwarfs the original version.
The flight performance of the Freewing Ares 3D shocked us! The four-minute debut promoti'onal video showcases what it can achieve. If we were to map the Ares's flight capabilities into a hexagonal radar chart, its performance could be adjusted via settings to cater to different technical demands. For this reason, we have temporarily decided against releasing a non-vectored thrust version. Our goal is to offer a single variant that can adapt to pilots of varying skill levels, allowing them to progress from beginner to advanced flight modes through different configurations.
Conventional Flight
By selecting a more forward center of gravity (CG) and disabling vector control (while keeping it powered to prevent accidental nozzle movement), the Ares can be flown like a conventional aircraft. In this mode, its flight characteristics remain gentle, closely resembling the flight experience of the Avanti, or even surpassing in some aspects (such as high-angle stall behavior).
Intermediate Flight
With a slightly aft CG and vector control enabled, along with adjustments to the vector-rudder and vector-elevator mixing, the aircraft becomes more agile, capable of performing various vectored maneuvers to enhance flight enjoyment.
3D Flight
For experienced 3D pilots, selecting an aft CG, enabling full vector control, and fine-tuning advanced mixing settings unlocks even more aerobatic maneuvers, delivering an exhilarating flight experience.
Electric Vector EDF Jet on Ares 3D
The breakthrough in vectoring technology laid a solid foundation for the Ares 3D Jet.
But this was just the beginning. Simulation of 3D models revealed the 80-class Ares fell far short of targets, prompting a redesign for the 90 class.
Features:
- NEW! It is made with High quantity EPO Airframe
- NEW! The PNP version has 120 Amp ESC with 8A UBEC
- NEW! Thrust Reversing function for shorter landings
- NEW! Functional scale air brake for high alpha and help with shorter runways
- Flight surfaces are controlled with 10 units 9g servos and 2 units 17g digital metal gear servos for precise movement, strength and long life
- Bright 7 units LED landing and navigation lights for enhanced realism and dawn/dusk maneuvers
- Electronic retractable landing gear with CNC shock-absorbing struts and metal trunnions
- Scale, sequenced gear doors provide added realism and improved aerodynamics
Includes:
- Freewing Ares 3D Red Ultra Performance 8S 90mm EDF Jet
- 4075-1350Kv Brushless Motor,12-Blade 90mm EDF system, 120A Brushless ESC with thrust reversing and EC5 connector with 8A UBEC,were pre-installed
- All Servo,7 units LED lights, retracts and aluminum alloy Lading Gear Set pre-installed
Requires:
- 8 Channel radio - select a minimum 8 channel radio
- 8 Channel receiver - select a minimum 8 channel receiver
- 6 Cell 22.2V 5000 - 6000 mAh Lipo Battery with EC5 connector
- 6 Cell compatible battery charger -please select a minimum 6 cell (6S) charger
SPECIFICATIONS:
| Model Scale | N/A |
| Wingspan | 1156mm / 45.51in |
| Length | 1400mm / 55.11in |
| Empty Weight | 2350g |
| CG (Center of Gravity) | 215mm from the leading edge of the wing's root |
| Power System | 4075-1350KV Brushless Motor(included) |
| Electronic Speed Control | 1 unit 120A Electronic Speed Controller(ESC) with 1 units 8A BEC (included) |
| Propeller / EDF | 12-Blade 90mm EDF (included) |
| Servos |
|
| Landing Gear | Electronic, CNC retractable scale gear |
| Required Battery | 6 Cell 22.2V 5000-6000 mAh LiPo Battery (not included) |
| Required Radio | 8+ Channel (not included) |
| Ailerons | Elevons |
| Elevator | Elevons |
| Rudder | Yes |
| Flaps | No |
| Lights | Yes |
| Hinge Type | Nylon |
| Material | EPO Foam |
| Skill Level | Advanced/Expert |
| Build Time | 30 minites |
| Recommended Environment | Outdoors |
