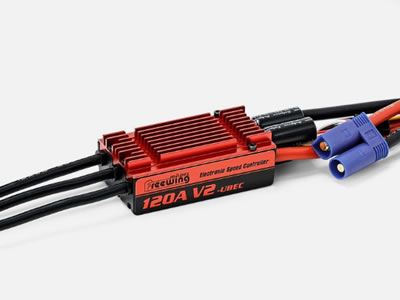

Freewing 120A V2 ESC Brushless Speed Control 3-8S Input Reverse Brake Function
Freewing 120A V2 ESC Brushless Speed Control 3-8S Input Reverse Brake Function
Discount price: US$88.00
Shipping Charges: US$25.00
Deliver to:
Delivery Time: 3 to 7 business days
Freewing 120A v2 ESC with 8A BEC and Reverse Thrust Function
if buyers get wholesale discount price,please contact us by e-mail.
Freewing 120A ESC with EC5 connector:
Freewing 120A V2 ESC Brushless Electric Speed Control 3-8S Input Support Reverse Brake Function Racing Drone Accessory
Specification:
- ESC: 120A
- Input voltage: 3 - 8S
- Using plug: EC5
- BEC output: BEC 5V/6V/7.4V/8.4V at 10A
- Reverse brake function: support
- Product size: 85 x 35 x 22mm
- Weight: about 117g
Package Included:
- 1 x ESC

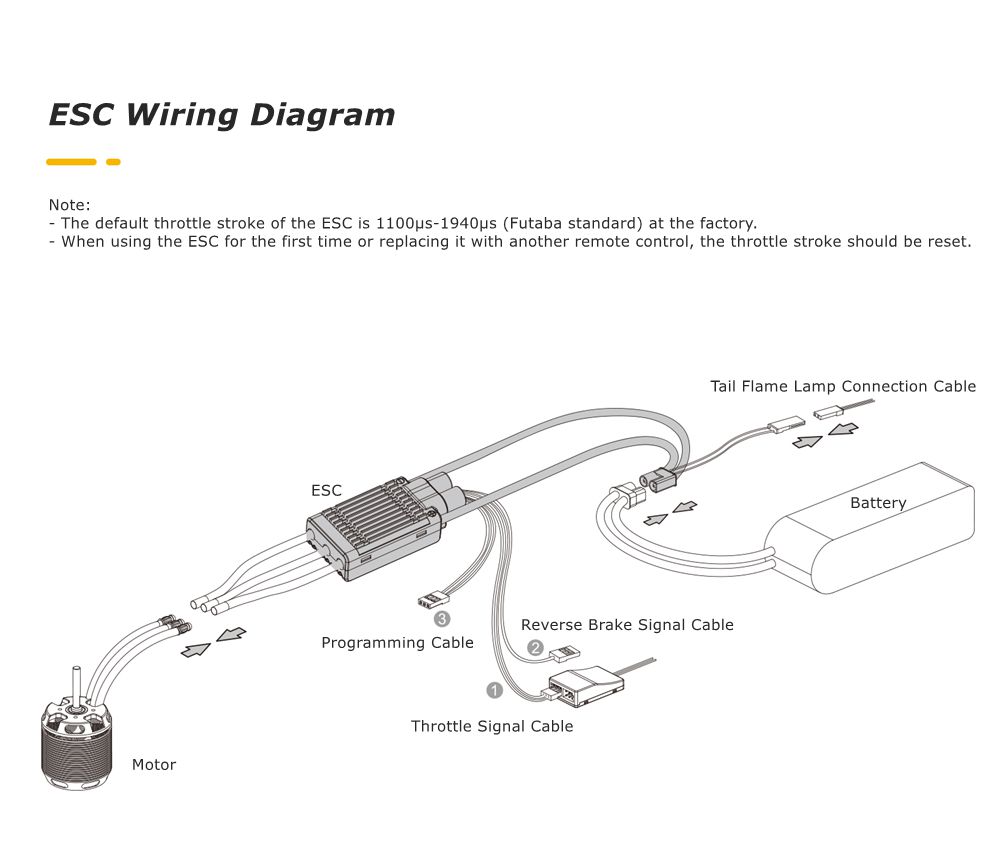

Signal Cable Description:
- Throttle signal cable (white, red, black): insert the receiver throttle channel or flight control throttle channel, where the white line is used to transmit throttle signals, and the red and black lines are the output lines of BEC.
- Reverse brake signal cable (yellow): when using the reverse brake, the signal line must be connected to other idle channels of the remote control to control the opening and closing of the reverse brake function.
- Programming cable (yellow): connect the LED programming box for parameter settings.
- Tail flame lamp connection cable: connect the LED tail flame control board.
Specification:
- ESC: 120A
- Input voltage: 3 - 8S
- Using plug: EC5
- BEC output: BEC 5V/6V/7.4V/8.4V at 10A
- Reverse brake function: support
- Product size: 85 x 35 x 22mm
- Weight: about 117g
Package Included:
- 1 x ESC
Signal Cable Description:
- Throttle signal cable (white, red, black): insert the receiver throttle channel or flight control throttle channel, where the white line is used to transmit throttle signals, and the red and black lines are the output lines of BEC.
- Reverse brake signal cable (yellow): when using the reverse brake, the signal line must be connected to other idle channels of the remote control to control the opening and closing of the reverse brake function.
- Programming cable (yellow): connect the LED programming box for parameter settings.
- Tail flame lamp connection cable: connect the LED tail flame control board.
This Product is available in stock，we will ship the package box within 48 hours after the buyers pay money via paypal.

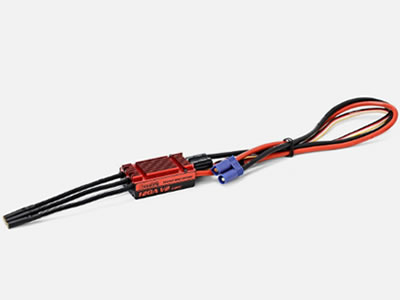

Freewing 120A ESC with EC5 connector
