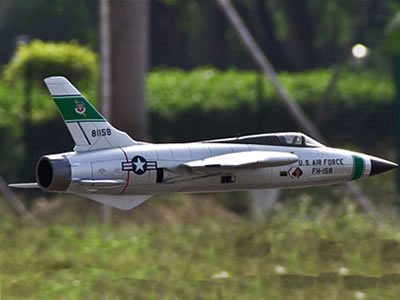

Freewing F-105 Thunderchief 64mm Jet PNP 3S RC Airplane

Freewing F-105 Thunderchief 64mm 3S EDF Jet PNP RC airplane

Wholesale price: [ $95.00 ]
Freewing F-105 Thunderchief 64mm Jet PNP 3S RC Airplane

1,It requires 4 Channel Receiver, it requires 4 Channel Radio
2,The 2627-4500kV Brushless Outrunner Motor was installed inside.
3, It requires 3 Cell 11.1V 1000 - 2200mAh LiPo Battery

if you want to know wholesale discount price,please contact us by e-mail.

Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp

Freewing F-105 Thunderchief 64mm Jet PNP 3S RC Airplane Specifications:


Freewing Model have done it again! Lightning strikes twice and following up on the wildly popular F-8 Crusader, we are excited to announce our latest addition to the Park Jet Series, the F-105 Thunderchief! Relentless in its bombing missions during the Vietnam War, the supersonic F-105 excelled as a single seat F-105 fighter bomber and a two seat F/G SEAD or Wild Weasel platform. Never before available in foam PNP format, with the release of this Freewing F-105 Thunderchief we are proud to commemorate the service and sacrifices of all the Thud's crews who fought unbowed against terrible dangers.

Optimized for affordability and accessibility, the Freewing F-105 truly delivers the fun factor for park jet pilots. Continuing the popularity of our Freewing Stinger 64, F9F Panther, F-22 Raptor, and F-8 Crusader, the F-105 is perfect for pilots seeking standoff scale appearance of a rarely modeled aircraft in an affordable and easy to own package.

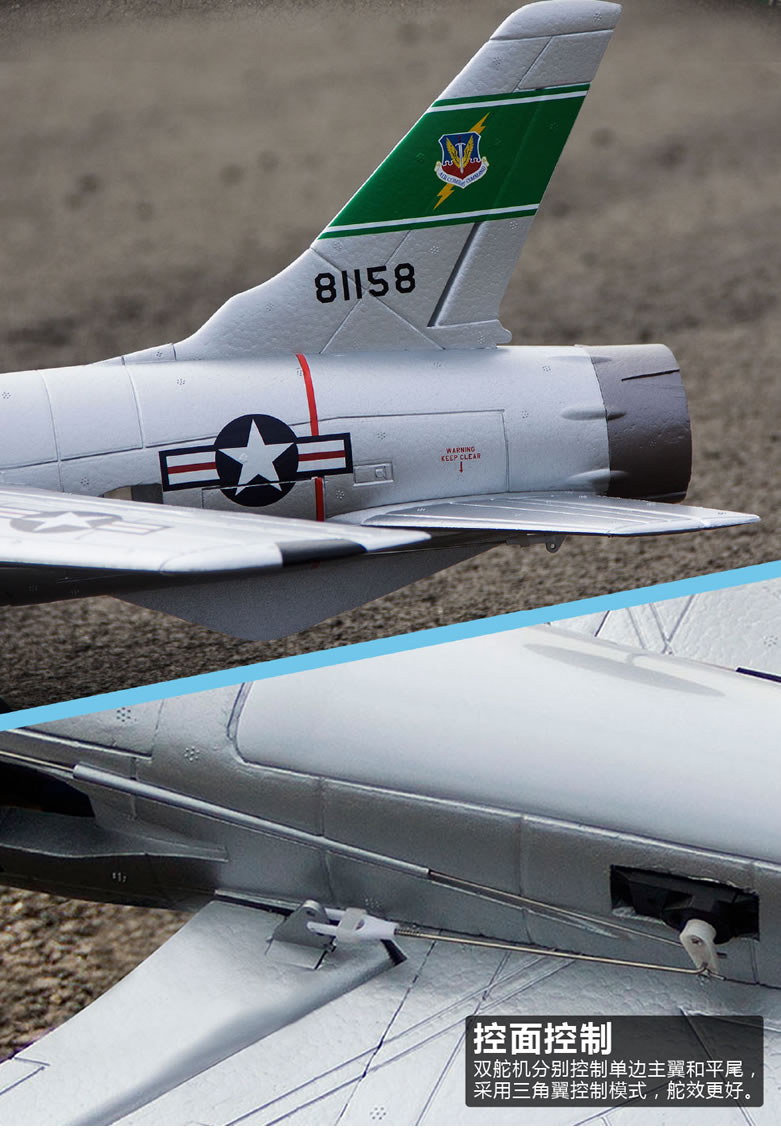

The Freewing 64mm F-105 Thunderchief is designed to be an ideal first hand launch EDF, for novice pilots wanting to learn how an EDF jet handles versus a propeller driven model aircraft of a similar size. The Thunderchief is surprisingly stable yet nimble, with axial rolls and predictable behavior. A shoulder mounted wing and embedded plastic skid plate along much of the belly protects the aircraft during carefree belly landings. Assembly is straightforward, and using only two servos minimizes weight, complexity, and cost. Like the F-8 Crusader, the F-105 Thunderchief is configured to be flown using a radio that has Elevon mixing, as each side's aileron and elevator surface are connected together. The model's low wing loading and manageable slow speed handling in the landing pattern negated the need for a heavy and costly variable incidence wing. The battery bay can also accommodate a small gyro for additional stabilization.

Powered by an efficient 64mm 5 blade EDF fan unit, 30A ESC and 2627-4500kv brushless outrunner motor, the Freewing 64mm F-105 Thunderchief reaches a top speed of 116kph/72mph using a single inexpensive 3s 1000mAh-2200mAh lipo battery with XT60 connector. While designed with simplified flight control surfaces and intended for hand launches and belly landing on grass runways, an optional landing gear set is sold separately for steerable operation on paved runways.

The F-105 Thunderchief has never been modeled in foam PNP before, and we know you'll be as pleased as we are with how this model flies. Own this rare model today!

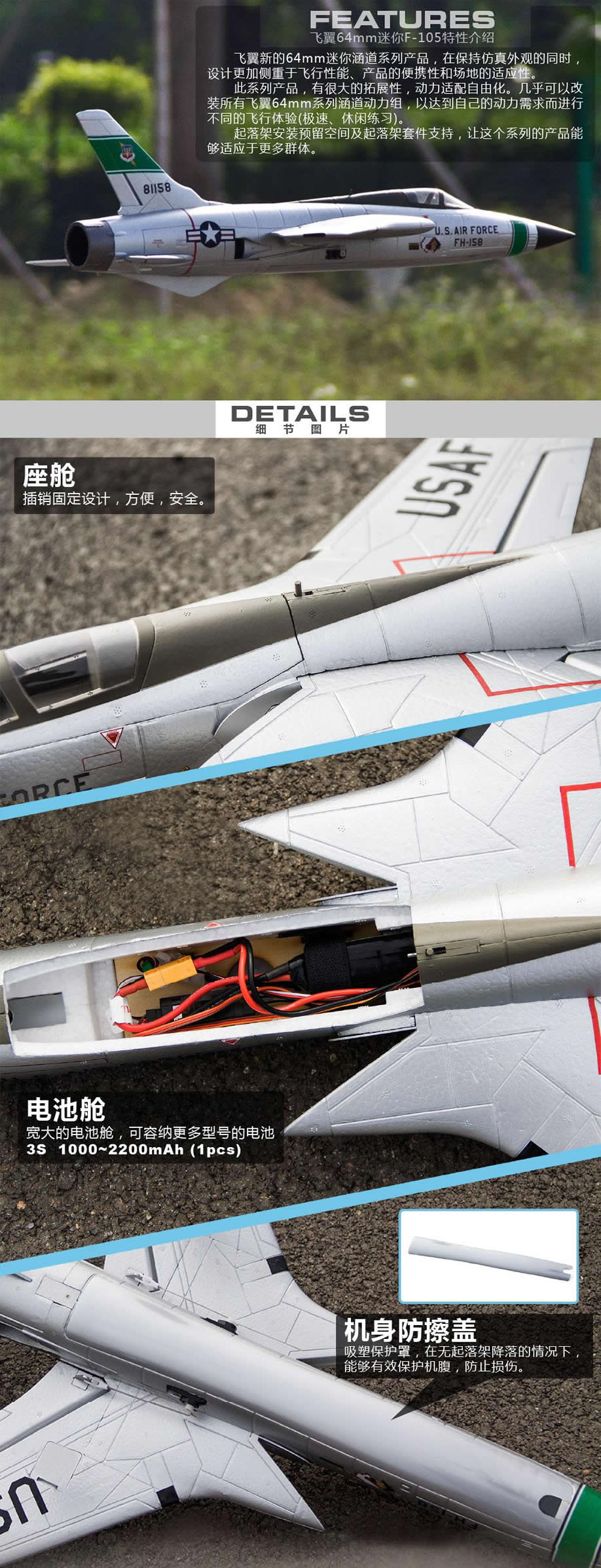

FEATURES:
it is 100% original ,made in China Freewing model manufacturer
Durable EPO Foam and Reinforced Construction
Realistic Shape and Detailing
Dynamically Balanced 5 Blade EDF Fan For Efficient Power
Minimal Assembly

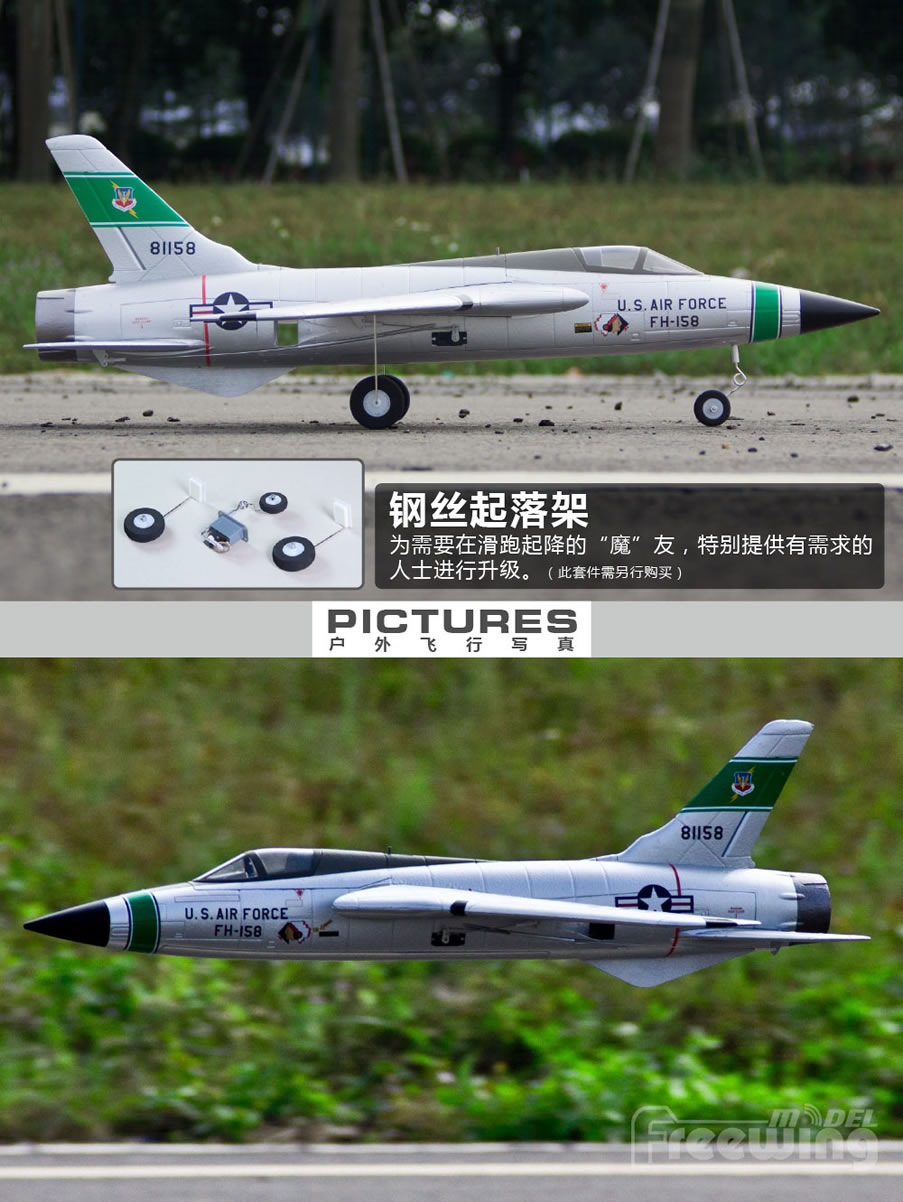

Optional Steerable Landing Gear (Sold Separately)

Includes

  • Freewing F-105 Thunderchief 64mm Jet PNP 3S
  • the ESC,brushless Motor has already installed,without battery.

Requires

  • Minimum 4 Channel Radio
  • 4 Channel Receiver
  • 3 Cell 11.1V 1000 - 2200mAh LiPo Battery with XT60 connector or XT60 adaptor
  • Lipo Battery Charger
  • PNP version - 30-60mn are required to complete the building



PRODUCT SPECIFICATIONS:

Wingspan (mm): 530mm / 20.8in
Length (mm): 800mm / 31.5in
Flying weight (gr) 360g / 12.69oz (w/o battery)
CG (Center of Gravity) Check manual
Servos 2x 9 gr standard gear
Direction of Rotation (EDF Rotor) Classic Counter Clock Wize (CCW)
EDF Diameter Class (mm): 64
Blades: 5
Turbine shroud Synthetic
EDF Rotor Synthetic
Power System 2627-4500kV Brushless Outrunner Motor
Turns/min/Volt (Kv): 4500 Kv
Motor Type: Out-Runner
Electronic Speed Control 30A, Internal BEC
Battery Cells: 3s - 11.1v
Battery Capacity (mAh) 1.000 mAh, 2.200 mAh
Connection: XT60
Surfaces Ailerons, Elevator
Landing Gear (optional stearing gear is available)
Material EPO Foam
Build time 1 hour
Radio requise 4 channels minimum
Recommended pilot skill level Intermediate

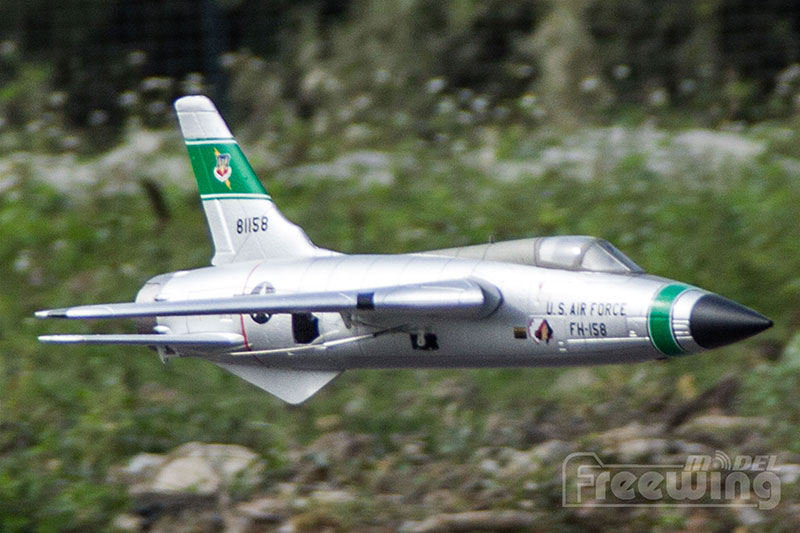

Freewing F-105 Thunderchief 64mm Jet 3S RC Airplane

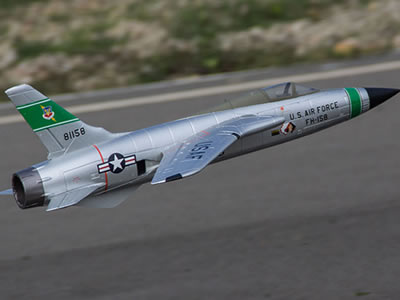

Freewing F-105 Thunderchief 64mm Jet 3S RC Airplane

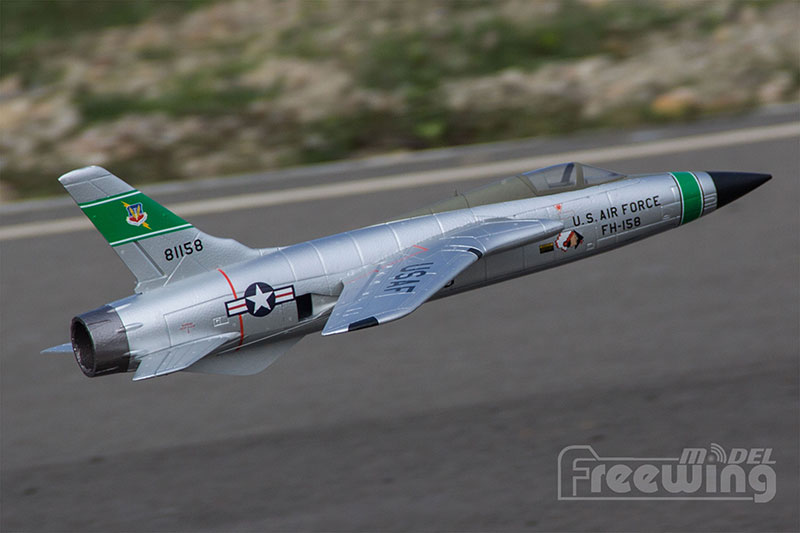

Freewing F-105 Thunderchief 64mm Jet 3S RC Airplane

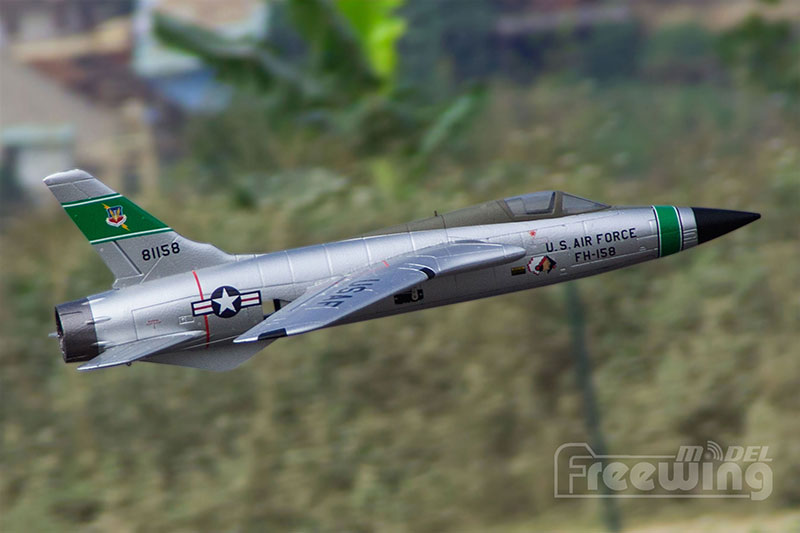

Freewing F-105 Thunderchief 64mm Jet 3S RC Airplane

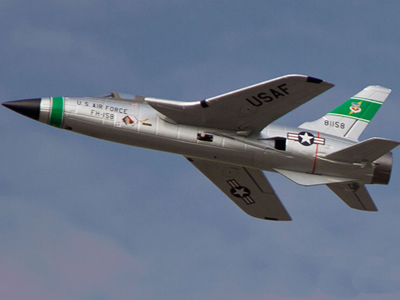

Freewing F-105 Thunderchief 64mm Jet 3S RC Airplane

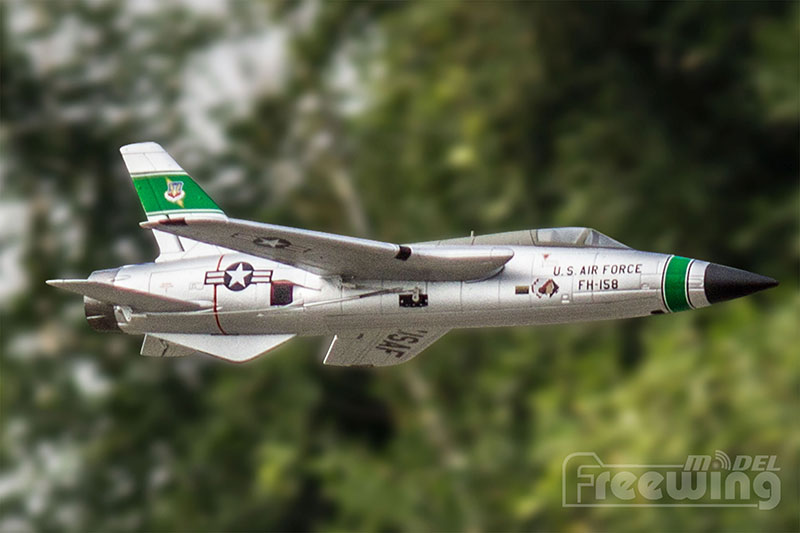

Freewing F-105 Thunderchief 64mm Jet 3S RC Airplane

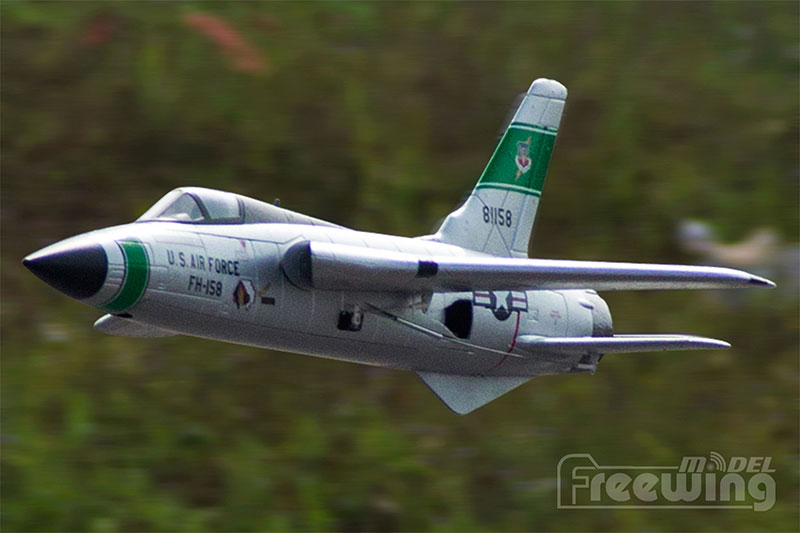

Freewing F-105 Thunderchief 64mm Jet 3S RC Airplane

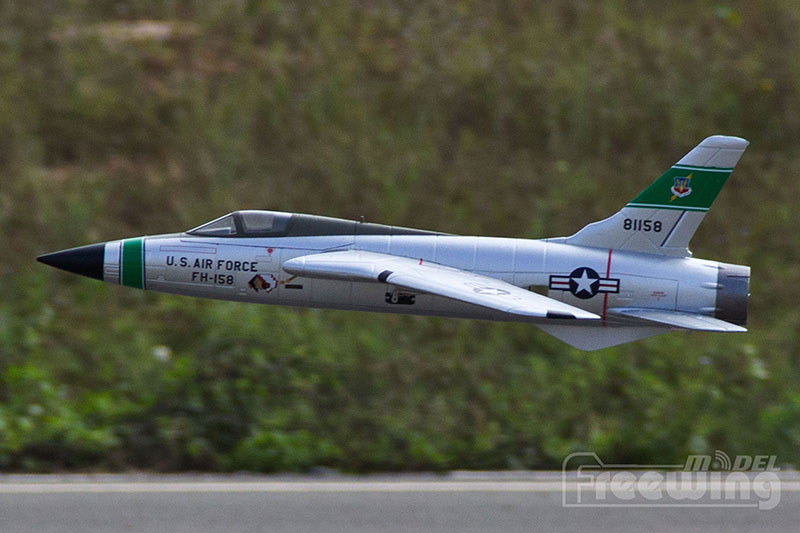

Freewing F-105 Thunderchief 64mm Jet 3S RC Airplane
