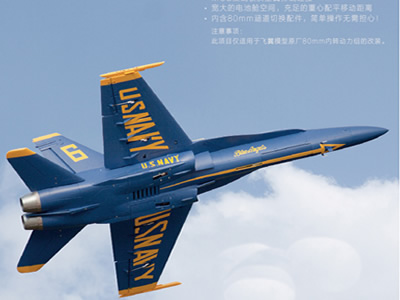

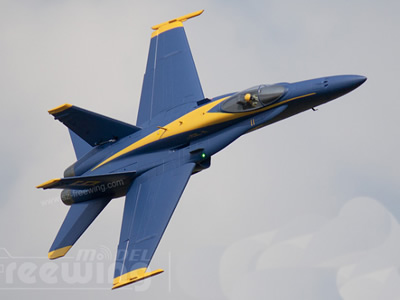

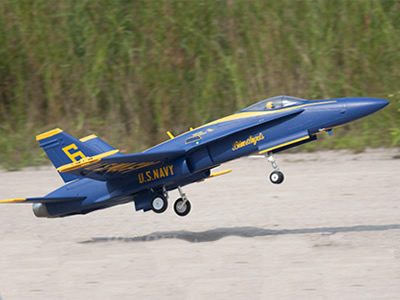

Freewing F/A-18C Hornet Blue Angels 90mm EDF Jet ARF Plus Servo Rc plane
1,it requires 6 Channel Radio .
2,it requires 6 Channel Receiver
3,it requires 3748-1750kV outrunner brushless motor
Note:
If your shipment is delivered to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
Note: This is the ARF+Servos version for pilots who wish to install their own power system. All primary electronics including servos and landing gear retracts come pre-installed, just add your own power system (EDF, motor, and ESC) to begin flying.
Over 10 years ago,began developing their first American 90mm EDF, the F/A-18E Super Hornet. Made of EPS foam and sporting a plastic five blade fan, that model was one of the first 90mm PNPs to demonstrate Freewing Model's dreams, and it set the stage for their evolution. Having partnered with us at RC Hoby for the past 9 years, we have all been humbly privileged to expand the Foam EDF Jet's place in the RC hobby and earn the business of customers worldwide. Thank you for your continued feedback, excitement, and trust!
To celebrate Freewing's Eleventh anniversary, we are proud to announce an all-new 90mm F/A-18C Hornet, complete with all the latest features common to modern era EDFs in our Super Scale series. Be sure to save a summer slot for the Freewing F/A-18C, the quintessential 90mm Hornet on the planet!
- this Model is Made by in China
- This is not a V3, but a completely new design/variant from the ground-up
- F/A-18C "Legacy", the world's first C variant 90mm PNP
- Efficient and powerful 90mm 9-Blade EDF
- 6S 5000-6000mAh lipo can easily achieve 4-5+ minutes of managed flight time
- Manufactured with durable and quality EPO foam, not EPS
- Complete screw-together assembly without the need for any glue
- Scale outline, including open vents between the fuselage and intakes, and downward angled wingtip rails never before seen in a foam F-18
- Completely concealed elevator servos and elevator control hardware for less drag and clean scale outline
- Full coverage plastic undercarriage doors
- Aluminum suspension undercarriage
- Trailing link struts
- Low visibility rudder servo placement
- Low visibility flap servo placement and geometry
- All-new plastic Fowler flap arm hinges to mimic those on the real F-18
- Removable plastic-tipped magnetic nose cone
- Removable wings with QD wing harness
- LED lighting on nose strut, chines, and dorsal
- Large battery bay for battery, MFCB, and gyro
- Sharp and shallow panel lines in sensible areas without reducing overall scale effect
- Pre-molded wing station to accept Freewing's MWS plastic slot system (aftermarket pylons, ordnance, 3DP, Runcam, etc)
- Quick Service servo plates on the wings and vertical stabilizers (screws, not glue)
- Plastic lined coaming to resist bubbling under the canopy
- Plastic tipped nosecone, capped intake lips and wingtip rails with pre-installed MWS slot
- Plastic nozzles with two-tone metallic paint job
- Blue Angels livery with factory-installed primary markings and un-installed tail number/BuNos
INCLUDES:
- Freewing F/A-18C Hornet Blue Angels 90mm EDF Jet - ARF PLUS Servo
- Electronic retractable landing gear(installed)
- Servos, LED Lights (installed),the ESC was not installed,the motor power system was not installed
REQUIRES:
- 6 Channel radio - select a minimum 6 channel radio
- Brushless motor, EDF unit and ESC.
- 6 Channel receiver - select a minimum 6 channel receiver
- 6 Cell 22.2V 5000-6000 mAh LiPo battery with EC5 connector
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger
Model Scale |
1 : 11 Scale |
Wingspan |
1034mm / 40.7in |
Length |
1500mm /59.05in |
Empty Weight |
2640g / 93.12oz (w/o battery) |
CG (Center of Gravity) |
88mm (3.4") from the leading edge of the wing at the root |
Power System |
6S 3748-1750kV Brushless Outrunner Motor |
Electronic Speed Control |
130A, EC5 Connector |
Propeller / EDF |
90mm 9-Blade EDF |
Servos |
9g metal gear digital standard with 500mm lead : nose gear steering |
Landing Gear |
Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts |
Required Battery |
6S 22.2V 5000-6000mAh LiPo with EC5 connector (required) |
Required Radio |
6 Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
Yes |
Hinge Type |
Nylon Reinforced |
Material |
EPO Foam |
Skill Level |
Intermediate/Advanced |
Build Time |
3-4 Hours |
Recommended Environment |
Outdoor, 150+ foot paved runway or short manicured grass |
